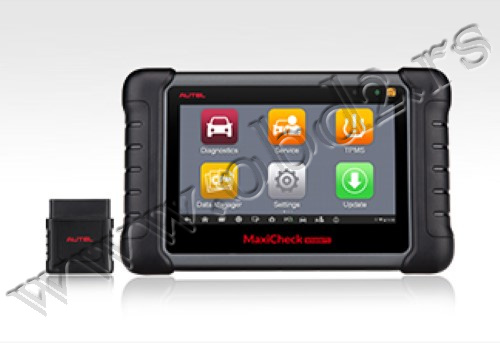

MaxiCheck MX808TS auto-dijagnostika

Opis

MaxiCheck MX808TS univerzalni dijagnostički uređaj Vam pruža mogućnost brzog čitanja, brisanja DTSa za sve dostupne module većine modela na tržištu, specijalne funkcije, uključujući reset servisa ulja, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter) i IMMO.

Kao dodatak OBD II dijagnostici i posebnim uslugama, MX808TS Vam omogućava da obavite sve TPMS funkcije, uključujući TPMS proveru ispravnosti, aktivacija i programiranje senzora i TPMS relearn.

Karakteristike:

Napredna TPMS dijagnostika za kompletnu proveru TPMS
Programira AUTEL MX-Senzore
Obimno pokriće OBD relearn
Relearn procedura direktno na ekranu
Čita/briše kodove za sve dostupne sisteme
Prikazuje live data u vidu teksta i grafikona
Auto VIN tehnologija automatski identifikuje informacije o vozilu
Ponovno podešavanje ručne kočnice posle zamene
Podrška za prisilnu DPF regeneraciju i podešavanje injektora
Reset senzora ugla volana (SAS)
Reset servisne kilometraže i servisnih intervala
Podrška za registraciju i reset akumulatora

SPECIFIKACIJE

Recommended Use	Indoor
Operating System	Android™ 4.4.2, KitKat
Processor	Cortex-A9 processor (1.5 GHz)
Memory	32GB
Display	7-inch LCD capacitive touch screen with 1024×600 resolution
Connectivity	• Mini USB 2.0 • USB 2.0 • Wi-Fi • HDMI Type A • Micro SD card (supports up to 32GB)
Sensors	Light sensor for brightness auto changing
Audio Input/Output	• Input: N/A • Output: buzzer
Power and Battery	• 3.7 V/5000 mAh lithium-polymer battery • Charges via 5 VDC power supply
Tested Battery Life	Around 7 hours of continuous use
Battery Charging Input	5 V/1.5 A
Power Consumption	600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.	-10 to 60°C(14 to 140°F)
Storage Temp.	-20 to 70°C (-4 to 158°F)
Operating Humidity	5% – 95% non-condensing
Dimensions (W x H x D)	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight	885 g (2.31 lb.)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

DODACI

SB External Power Adapter_test
USB Cable (for test)
User Manual
Carry case
USB Cable (for charging)
MaxiVCI Mini
Quick Reference Guide
Magnet

UPUTSTVO

Preuzmi

Poređenje

	MaxiDAS DS808	MaxiDAS DS808TS	MX808	MX808TS
Read Codes	√	√	√	√
Erase Codes	√	√	√	√
Live Data	√	√	√	√
ECU Information	√	√	√	√
Active Test	√	√	—	—
Service Functions	√	√	—	—
Complete OBD Diagnositcs	√	√	√	√
Oil Serive Reset	√	√	√	√
Parking Brake Pad Relearn After Replacement	√	√	√	√
Steering Angle Sensor Relearn	√	√	√	√
Battery Registration and Reset	√	√	√	√
Diesel Particulate Filter Regeneration	√	√	√	√
Tire Pressure Monitoring System	Basic	Complete	Basic	Complete
Immobilizer Function	√	√	√	√
Advanced TPMS Diagnostics for Complete TPMS Health Check	—	√	—	√
Activate 98% of All Known TPMS Sensors	—	√	—	√
Program AUTEL MX-Sensors	—	√	—	√
Comprehensive OBD relearn coverage	—	√	—	√
On-screen Relearn Procedure	—	√	—	√
Processor	Quad-core 1.6GHz	Quad-core 1.6GHz	Quad-core 1.6GHz	Quad-core 1.6GHz
OS	Android 4.4.4	Android 4.4.4	Android 4.4.4	Android 4.4.4
Memory	1G + 32G	1G + 32G	1G + 32G	1G + 32G
Display	7″ LCD	7″ LCD	7″ LCD	7″ LCD
Battery	5000 mAh	5000 mAh	5000 mAh	5000 mAh
Internet Updatable	WiFi	WiFi	WiFi	WiFi
Multilingual Support	√	√	√	√
Historical Test Records	√	√	√	√
Save and Playback Data	√	√	√	√
Print Data via Windows PC or WIFI printer	√	√	√	√
Vehicle communication method	Wired	Wireless (bluetooth)	Wired	Wireless (bluetooth)
