MaxiIM IM608PRO
396. 000, 00 din
Opis
MaxiIM IM608 je jedinstven, najnapredniji, sveobuhvatan programator ključeva i dijagnostički uređaj koji kombinuje napredno programiranje ključeva, dijagnostiku svih sistema i napredne usluge u jednom 10.1 inča, Android, touchscreen tabletu. Opremljen je sa XP400 programatorom ključeva i MaxiFlash ECU programatorom da bi pružio kompletno pokriće IMMO i programatorskih funkcija. Sa mogućnošću brze dijagnoze svih modula većine modela na tržištu, IM608 vam pruža sve specijalne funkcije.
Karakteristike:
- Cortex A7+A15 six-core procesor
- 10.1-inča LED kapacitativni touchscreen rezolucije 1920×1200
- Integrisana 64GB memorija
- Integrisana kamera od 8-megapixela sa zadnje strane, sa autofokusom i blicom
- 802.11 a/b/g/n/ac Wi-Fi za pristup internetu
- Android Operativni Sistem
- Kombinacija programatora ključeva/dijagnostika svih sistema/naprednih usluga održavanja
- Profesionalni programator ključeva opremljen sa XP400 programatorom ključeva i MaxiFlash ECU programatorom da bi pružio kompletno pokriće IMMO
- Smart Mode za navođen i automatski key learning
- Expert Mode za napredan key learning
- Čita PIN/CS (all key lost), generisanje ključeva, key learning, remote learning
- IMMO ECU reset/adaptation, refresh/coding
- Čitanje/pisanje podataka transpondera, ECU/MCU/EEPROM podaci (npr. 9S12 encryption chip), IC card, detect remote frequency
- Sve za kodove, live data, active test, ECU information, prilagođavanja, uklapanja, kodiranje itd.
- Sve specijalne funkcije, EPB, DPF, SAS, Oil reset, BMS, TPMS sensor ID relearn, itd.
SPECIFIKACIJE
| Operating System | AndroidTM 4.4.2, KitKat | |
| Processor | Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15) | |
| Memory | 2GB RAM & 64GB On-board Memory | |
| Display | 10.1-inch LED capacitive touch screen with 1920×1200 resolution | |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI |
|
| Camera (rear) | 8.0 Megapixel, AF with Flashlight | |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) | |
| Audio Input/Output | Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack |
|
| Power and Battery | 15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
|
| Input Voltage | 12 V (9-24 V) | |
| Power Consumption | 6.5 W | |
| Operating Temp. | 0 to 50°C (32 to 122°F) | |
| Storage Temp. | -20 to 60°C (-4 to 140°F) | |
| Dimensions (W x H x D) | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) | |
| Weight | NW: 1.42 kg (3.13 lb.) GW: 8.655 kg (19.08 lb.) | |
| Protocols | ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN |

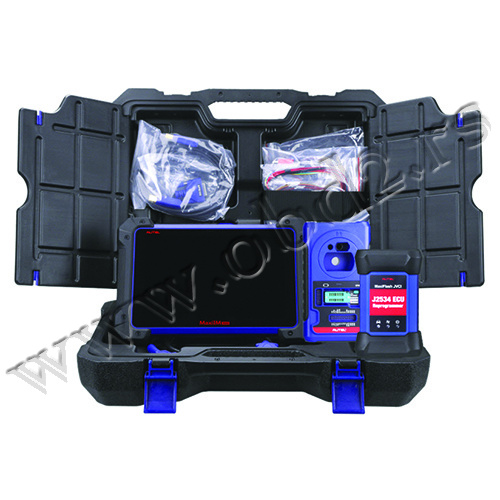

DODACI
- APA107 (Connect Cable)
- APA106 (MC9S12 Clamp)
- APA105 (MCU Clamp)
- APA104 (ECU Clamp)
- APA103 (EEPROM Clamp)
- APA101 (Single Cable)
- APA002 (EEPROM Socket)
- APB108 (MCU_FQFP176)
- APB107 (MCU_FQFP144)
- APB106 (MCU_FQFP112)
- APB105 (MCU_FQFP80)
- APB104 (MCU_FQFP64)
- APB102 (MB IR Cable)
- APB101+APD101 (EEPROM Adaptor + EEPROM Adaptor Shell)
- APC101 (USB Cable)
- AAC001 (MED17 Cable)
- Light Fuse 6*30mm (2pcs)
- XP400 Key Programmer
- MaxiFlash JVCI
- MaxiIM IM608
- AC/DC Adapter (12V)
- Carrying Case
- Quick Reference Guide
- Main cable
- USB Cable
- Cigarette Lighter
- Packing List
- Mini USB Cable
