PIAGGIO-GILERA-PEUGEOT

0.00 din

Opis

Advanced Scooter Workshop (ASWTM) V2.98

Uređaj koji će Vam pomoći da uštedite vreme u potrazi za ključevima PIAGGIO, GILERA, APRILIA, DERBI, VESPA i PEUGEOT skutera. Nema bušenja ili seče plastike koja ograđuje kontrolu paljenja, nema guljenja zelenog punjenja, nije potrebno nikakvo lemljenje – sve memorijske funkcije rade preko K-Line.
USB / K-Line interfejs se povezuje na kontrolu paljenja sa samo 4 žice. Key data za T5-11 transponder je izračunata posle EEPROM procedure čitanja podataka.
PAŽNJA: ovaj proizvod nema mogućnost da sam programira transponder sa key data. Svaki transponder programer sa T5 mogućnostima programiranja je odgovarajući za obavljanje finalnih koraka u pravljenju ključa. Transponderi se ne isporučuju uz ovaj proizvod.

Funkcije

Podržani ignition (CDI) / Injection controllers:

EFI TECHNOLOGY PGN04 with STM8S105 MCU (NEW!)

READ key data for programming to the T5 transponder

PHILIPS TSDI / DiTECH / PUREJET with TQFP-64 MC68HC908AZ60A (3K85K) MCU

READ/WRITE MC68HC908AZ60A internal EEPROM by K-Line
READ/WRITE external SPI EEPROM 25C160 by K-Line
READ MC68HC908AZ60A full 64K memory area
CLEAR FAULT MEMORY
RESET TO NEW / IMMO-OFF

MAGNETI MARELLI IAW 5AM HW103 / HW610 injection control module (HYBRID) with EEPROM 95160

READ / WRITE of external EEPROM 95160 by K-Line
RESET TO NEW

MAGNETI MARELLI with TQFP-64 MC68HC05Bxx (0D54J, 0D60J) MCU (system type ACI100, ACI50X, ACI60X)

READ / WRITE of MC68HC05B8/B16 internal EEPROM by K-Line
CALCULATE both MASTER and SERVICE key data for programming to the T5-TYPE11 transponder
CALCULATE CRC of key data blocks

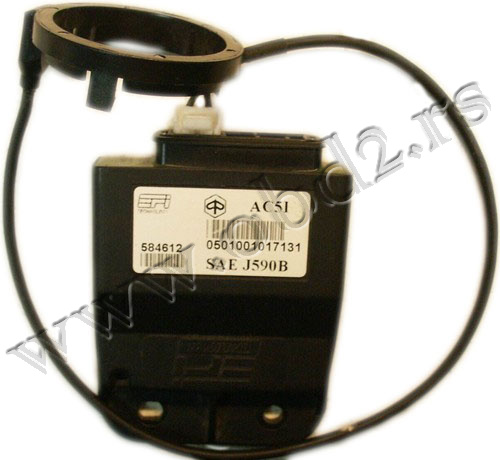

EFI TECHNOLOGY with ST72C334 / ST72F521 MCU and 95040 / 95080 EEPROM (system type ACII, AC2I, AC5I, AC8I, AC19I, AC20I, AC21I, AC23I, AC25I AC32I etc.)

READ / WRITE of ST72C334 internal EEPROM by K-Line
READ / WRITE of external 95040 or 95080 SPI EEPROM by K-Line

READ data of TRANSPONDER KEY in the ignition lock by K-Line. Any of EFI TEECHNOLOGY CDI now can be used as a simple transponder reader for scooter keys
RESET of previously used CDI controller to the FACTORY state
CALCULATE both MASTER and SERVICE key data for programming to the T5-TYPE11 transponder
CALCULATE CRC of key data block

MAGNETI MARELLI IMM003/IMM006 immobilizer module with 28 pin MC68HC05E6 (0F82B, 0G72G, 2F75B) MCU

READ / WRITE of MC68HC05E6 (0F82B / 0G72G) internal EEPROM by K-Line
CALCULATE both MASTER and SERVICE key data for programming to the T5-TYPE11 transponder
RESET of previously used Immobilizer Control Unit to the FACTORY state

MAGNETI MARELLI MIU1 (32MIU1) injection control module / throttle body with ST10F269-T3 MCU

READ KeyData memory block from FLASH of ST10F269-T3 by K-Line
CALCULATE both MASTER and SERVICE key data for programming to the T5-TYPE11 transponder

MAGNETI MARELLI MIU2 (32MIU2) injection control module / throttle body with ST10F269-T3 MCU and EEPROM 95160

READ KeyData memory block from FLASH of ST10F269-T3 by K-Line
CALCULATE both MASTER and SERVICE key data for programming to the T5-TYPE11 transponder

MAGNETI MARELLI MIU4 (32MIU4) injection control module / throttle body with ST10F269-T3 MCU and EEPROM 95160

READ KeyData memory block from FLASH of ST10F269-T3 by K-Line
CALCULATE both MASTER and SERVICE key data for programming to the T5-TYPE11 transponder

MAGNETI MARELLI MIU G3 (32M3G1 / 38M3G1) injection control module / throttle body with Infineon SAK-XC2060 and EEPROM 95320

READ / WRITE of external EEPROM 95320 by K-Line
CALCULATE both MASTER and SERVICE key data for programming to the T5-TYPE11 transponder
RESET of previously used Injection Control Unit to the FACTORY state
CALCULATE CRC

MAGNETI MARELLI RIU1 (32RIU1 / 38RIU1) injection control module / throttle body with Infineon SAK-XC2785X and EEPROM 95320

READ / WRITE of external EEPROM 95320 by K-Line
CALCULATE both MASTER and SERVICE key data for programming to the T5-TYPE11 transponder
RESET of previously used Injection Control Unit to the FACTORY state
CALCULATE CRC

MAGNETI MARELLI IAW15 injection control module with MOTOROLA MC68HC11F1 (2E87J) MCU

READ / WRITE of internal MC68HC11F1 EEPROM by K-Line
CALCULATE MASTER key data for programming to the T5-TYPE11 transponder
RESET of previously used Injection Control Unit to the FACTORY state
CALCULATE CRC

SOFTWARE DOWNLOAD

Download

Kako spojiti

Preuzmi

UPUTSTVO

Preuzmi
